Lightweight Front Access Maintenance Rental LED Screen- Portable & Convenient

Lightweight Front Access Maintenance Rental LED Screen- Portable & Convenient

Made of lightweight materials die-casting aluminum, it's easy to carry. The front - maintenance design ensures quick issue-solving, offering an intelligent solution for modern rental events.
Model: Indoor P1.5625 P1.953 P2.604 P2.976 P3.91
Outdoor P2.604 P2.976 P3.91 P4.81

Consult

Features
Technical Indicators

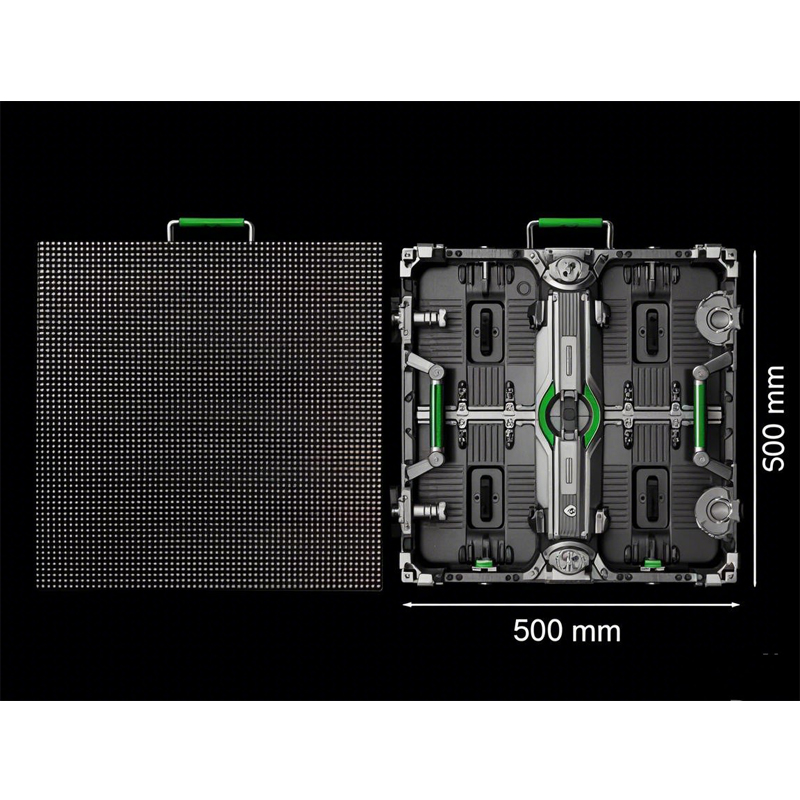

Overall Dimension

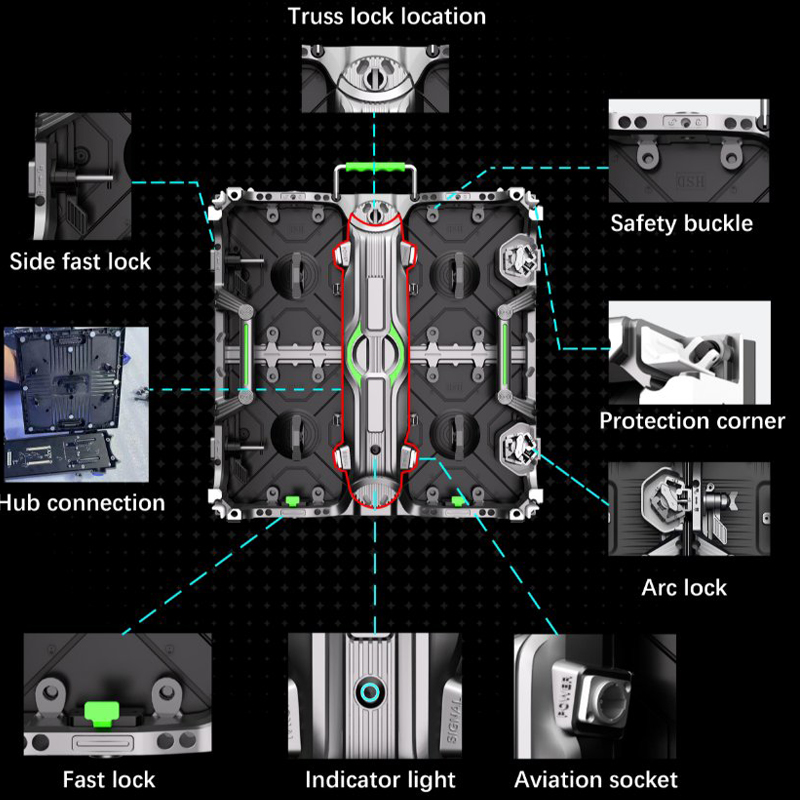

1.Easy -to-Reach Components: The design ensures that all components are easily reachable. This allows for quick inspections and repairs, reducing the time spent on maintenance. 2.Suitable for Diverse Events: Whether it's a product launch, a live music event, or a corporate training session, the cabinet can be adapted to fit the event's specific needs. 3.Solid Build Quality: The cabinet is constructed with a solid build quality, providing reliable performance even under heavy use. 4.Lightweight Design for Mobility: Despite its robust build, the cabinet is lightweight, making it easy to move around and install at different venues. 5.Fast Installation and Removal: Combined with its modular design, enables fast installation and removal, which is crucial for rental operations with tight schedules. 6.Cost - Effective Maintenance: By simplifying the maintenance process, the front access maintenance rental LED screen helps rental companies save on maintenance costs over time.
Model
P1.5625
P1.953
P2.604
P2.976
P3.91
P2.976
P3.91
Application
Indoor
Indoor
Indoor Outdoor
Indoor
Indoor
Outdoor
Outdoor
LED Type
SMD1212
SMD 1515
SMD1515
SMD1415
SMD 1515
SMD 2020
SMD 1415
SMD 1921
Pixel Configuration
1R1GIB
1R1GIB
1R1GIB
1R1G1B
1R1G1B
1R1G1B
1R1G1B
Pixel Pitch(mm)
1.5625
1.953
2.604
2.976
P3.91
2.976
3.91
Module Size(mm)
250*250
250*250
250*250
250*250
250*250
250*250
250*250
Module Resolution
160*160
128*128
96*96
84*84
64*64
84*84
64*64
Cabinet Size (mm)
500*500
500*500
500*500
500*1000
500*500
500*1000
500*500
500*1000
500*500
500*1000
500*500
500*1000
Cabinet Weight(kg)
6.5
6.5
6.5/12
6.5/12
6.5/12
7.4/13
7.4/13
Pixel Density
409600
262144
147456
112896
65536
112896
65536
Material
Die-casting Aluminum
Operating Temperature
-20°C~60°C
-20°C~60°C
-20°C~60°C
-20°C~60°C
-20°C~60°C
-20°C~60°C
-20°C~60°C
Operating Humidity
10%~90%
10%~90%
10%~90%
10%~90%
10%~90%
10%~90%
10%~90%
Refresh Rate
3840HZ
3840HZ
3840HZ
3840HZ
3840HZ
3840HZ
3840HZ
Drive Mode
1/40
1/32
1/32 1/24
1/28
1/16
1/21
1/16
Brightness(nits)
≥800
≥800
≥800 ≥5000
≥800
≥1000
≥5500
≥5000
Viewing Angle(H/V)
160°/160°
160°/160°
160°/160°
160°/160°
160°/160°
160°/160°
160°/160°
Frame Rate
≥50/60
≥50/60
≥50/60
≥50/60
≥50/60
≥50/60
≥50/60
Control Mode
Synchronous
Input Voltage
AC110/220V
AC110/220V
AC110/220V
AC110/220V
AC110/220V
AC110/220V
AC110/220V
Max.Power(W/sqm)
<800
<800
<800
<800
<800
<800
<800
Average Power(W /sqm)
<180
<180
<180
<180
<180
<250
<250
Lifespan

>100000h
Application scenario Reference:
1.Corporate Presentations：Convey ideas clearly. Ensure smooth delivery, fixing issues without delay.
2.Trade Show Exhibits：Attract visitors with vivid visuals. Keeps the LED displays engaging.
3.Live Entertainment Shows：Create immersive experiences. The LED video wall enhance stage presence throughout the show.
4.Theater Productions：Elevate set designs. The led screen ensures seamless visual effects during performances.
5.Retail Store Promotions：Boost sales with eye - catching ads.the rental LED displays stay in top-notch condition.
6.Outdoor Festivals：Display event info and entertainment.

Model	P1.5625	P1.953	P2.604	P2.976	P3.91	P2.976	P3.91
Application	Indoor	Indoor	Indoor Outdoor	Indoor	Indoor	Outdoor	Outdoor
LED Type	SMD1212	SMD 1515	SMD1515 SMD1415	SMD 1515	SMD 2020	SMD 1415	SMD 1921
Pixel Configuration	1R1GIB	1R1GIB	1R1GIB	1R1G1B	1R1G1B	1R1G1B	1R1G1B
Pixel Pitch(mm)	1.5625	1.953	2.604	2.976	P3.91	2.976	3.91
Module Size(mm)	250*250	250*250	250*250	250*250	250*250	250*250	250*250
Module Resolution	160*160	128*128	96*96	84*84	64*64	84*84	64*64
Cabinet Size (mm)	500*500	500*500	500500 5001000	500500 5001000	500500 5001000	500500 5001000	500500 5001000
Cabinet Weight(kg)	6.5	6.5	6.5/12	6.5/12	6.5/12	7.4/13	7.4/13
Pixel Density	409600	262144	147456	112896	65536	112896	65536
Material	Die-casting Aluminum
Operating Temperature	-20°C~60°C	-20°C~60°C	-20°C~60°C	-20°C~60°C	-20°C~60°C	-20°C~60°C	-20°C~60°C
Operating Humidity	10%~90%	10%~90%	10%~90%	10%~90%	10%~90%	10%~90%	10%~90%
Refresh Rate	3840HZ	3840HZ	3840HZ	3840HZ	3840HZ	3840HZ	3840HZ
Drive Mode	1/40	1/32	1/32 1/24	1/28	1/16	1/21	1/16
Brightness(nits)	≥800	≥800	≥800 ≥5000	≥800	≥1000	≥5500	≥5000
Viewing Angle(H/V)	160°/160°	160°/160°	160°/160°	160°/160°	160°/160°	160°/160°	160°/160°
Frame Rate	≥50/60	≥50/60	≥50/60	≥50/60	≥50/60	≥50/60	≥50/60
Control Mode	Synchronous
Input Voltage	AC110/220V	AC110/220V	AC110/220V	AC110/220V	AC110/220V	AC110/220V	AC110/220V
Max.Power(W/sqm)	<800	<800	<800	<800	<800	<800	<800
Average Power(W /sqm)	<180	<180	<180	<180	<180	<250	<250
Lifespan		>100000h
