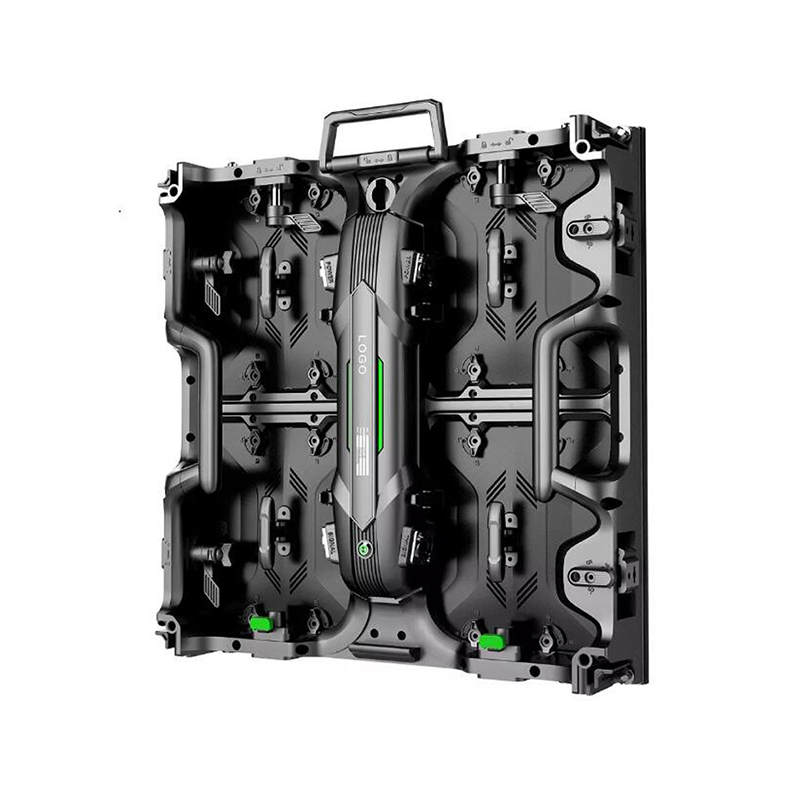

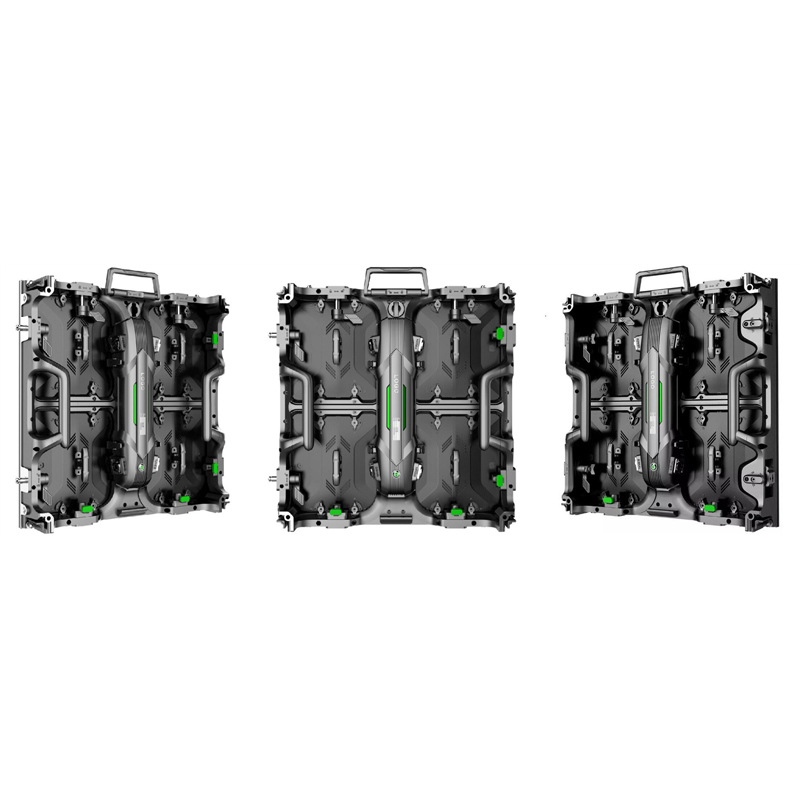

Front Maintenance Rental LED Display Cabinet - Quick Installation & Easy Setup

Front Maintenance Rental LED Display Cabinet - Quick Installation & Easy Setup

Designed for rental events,high definition visuals. The front - maintenance approach saves time on troubleshooting, a great fit for touring shows and mobile exhibitions, providing a stunning visual treat.
Model: Indoor P1.5625 P1.953 P2.604 P2.976 P3.91
Outdoor P2.604 P2.976 P3.91 P4.81

Consult

Features
Technical Indicators
Overall Dimension

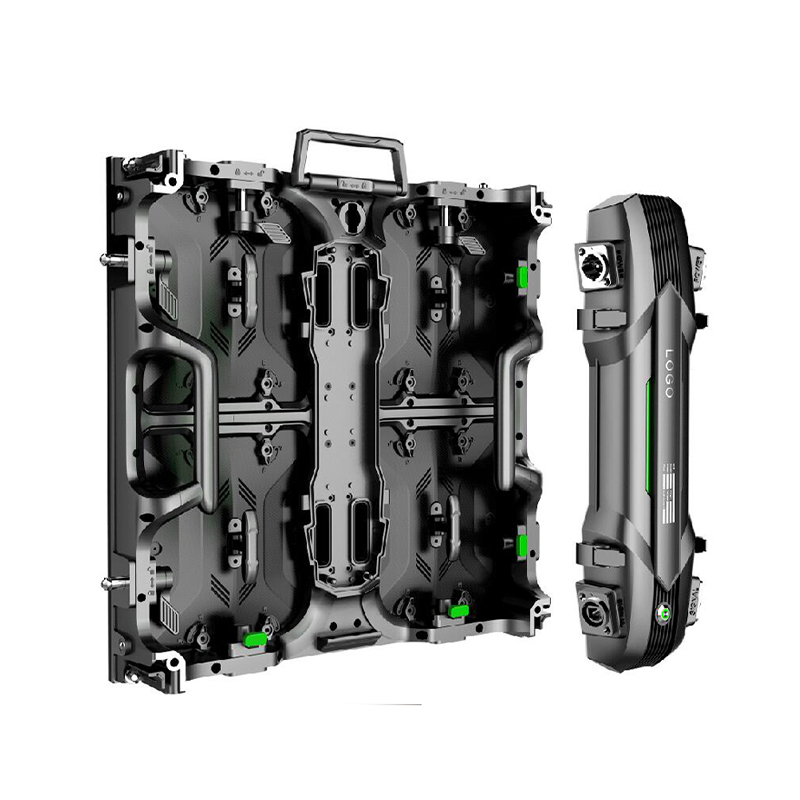

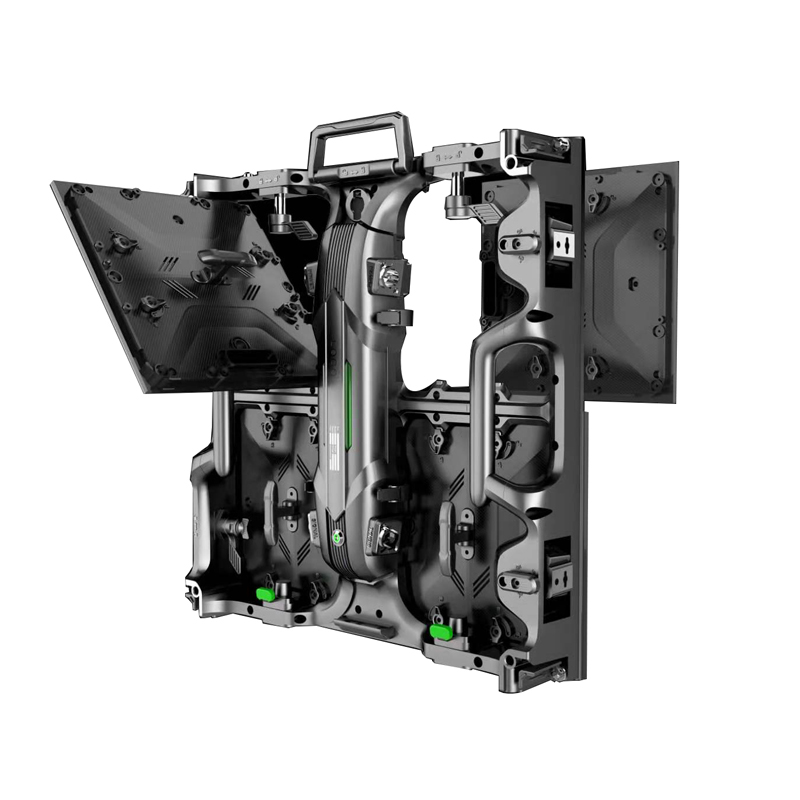

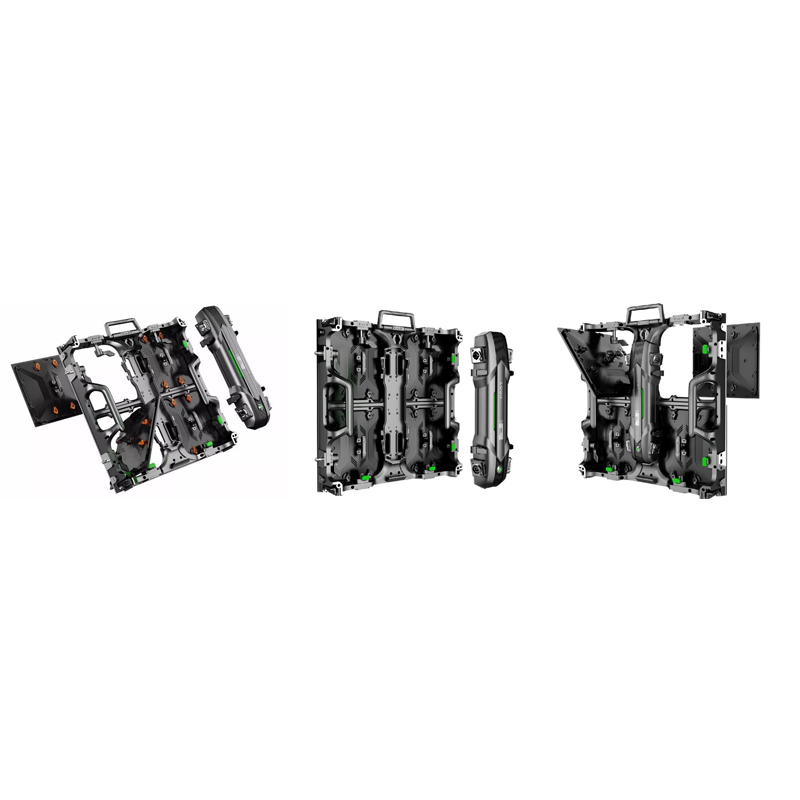

1.Streamlined Maintenance Access: The front maintenance based design offers a streamlined access to all internal components. This allows technicians to perform maintenance tasks with maximum efficiency. 2.Customizable for Events: These cabinets can be customized in terms of size, color, and functionality to match the theme and requirements of different events. 3.Durable for Repeated Use: Engineered for durability, the cabinet can withstand repeated use, transportation, and installation, ensuring a long - lasting investment for rental companies. 4.Space -Efficient Storage: The cabinet's design is optimized for space - efficient storage, reducing the amount of storage space required for rental fleets. 5.Quick Response to Maintenance Needs: The front maintenance based design enables a quick response to any maintenance needs, minimizing the impact on event operations. 6.Enhanced Return on Investment: With its low maintenance costs, long lifespan, and high adaptability, the front - maintenance - based rental cabinet offers an enhanced return on investment for rental businesses.
Model
P1.5625
P1.953
P2.604
P2.976
P3.91
P2.976
P3.91
Application
Indoor
Indoor
Indoor Outdoor
Indoor
Indoor
Outdoor
Outdoor
LED Type
SMD1212
SMD 1515
SMD1515
SMD1415
SMD 1515
SMD 2020
SMD 1415
SMD 1921
Pixel Configuration
1R1GIB
1R1GIB
1R1GIB
1R1G1B
1R1G1B
1R1G1B
1R1G1B
Pixel Pitch(mm)
1.5625
1.953
2.604
2.976
P3.91
2.976
3.91
Module Size(mm)
250*250
250*250
250*250
250*250
250*250
250*250
250*250
Module Resolution
160*160
128*128
96*96
84*84
64*64
84*84
64*64
Cabinet Size (mm)
500*500
500*500
500*500
500*1000
500*500
500*1000
500*500
500*1000
500*500
500*1000
500*500
500*1000
Cabinet Weight(kg)
6.5
6.5
6.5/12
6.5/12
6.5/12
7.4/13
7.4/13
Pixel Density
409600
262144
147456
112896
65536
112896
65536
Material
Die-casting Aluminum
Operating Temperature
-20°C~60°C
-20°C~60°C
-20°C~60°C
-20°C~60°C
-20°C~60°C
-20°C~60°C
-20°C~60°C
Operating Humidity
10%~90%
10%~90%
10%~90%
10%~90%
10%~90%
10%~90%
10%~90%
Refresh Rate
3840HZ
3840HZ
3840HZ
3840HZ
3840HZ
3840HZ
3840HZ
Drive Mode
1/40
1/32
1/32 1/24
1/28
1/16
1/21
1/16
Brightness(nits)
≥800
≥800
≥800 ≥5000
≥800
≥1000
≥5500
≥5000
Viewing Angle(H/V)
160°/160°
160°/160°
160°/160°
160°/160°
160°/160°
160°/160°
160°/160°
Frame Rate
≥50/60
≥50/60
≥50/60
≥50/60
≥50/60
≥50/60
≥50/60
Control Mode
Synchronous
Input Voltage
AC110/220V
AC110/220V
AC110/220V
AC110/220V
AC110/220V
AC110/220V
AC110/220V
Max.Power(W/sqm)
<800
<800
<800
<800
<800
<800
<800
Average Power(W /sqm)
<180
<180
<180
<180
<180
<250
<250
Lifespan

>100000h
Application scenario Reference:
1.Corporate Events：Ideal for corporate events like conferences and product launches.
2.Trade Shows：In trade shows, these displays attract visitors to booths.
3. Live Concerts：As stage backdrops in concerts, they create a dynamic atmosphere.
4.Theater Productions：For theater, they enhance set designs. Front - accessible maintenance ensures smooth operation during performances.
5.Retail Stores：Retail stores use them for promotions. The LED displays appealing to customers.
6.Outdoor Festivals：At outdoor festivals, they handle large - scale visuals.

Model	P1.5625	P1.953	P2.604	P2.976	P3.91	P2.976	P3.91
Application	Indoor	Indoor	Indoor Outdoor	Indoor	Indoor	Outdoor	Outdoor
LED Type	SMD1212	SMD 1515	SMD1515 SMD1415	SMD 1515	SMD 2020	SMD 1415	SMD 1921
Pixel Configuration	1R1GIB	1R1GIB	1R1GIB	1R1G1B	1R1G1B	1R1G1B	1R1G1B
Pixel Pitch(mm)	1.5625	1.953	2.604	2.976	P3.91	2.976	3.91
Module Size(mm)	250*250	250*250	250*250	250*250	250*250	250*250	250*250
Module Resolution	160*160	128*128	96*96	84*84	64*64	84*84	64*64
Cabinet Size (mm)	500*500	500*500	500500 5001000	500500 5001000	500500 5001000	500500 5001000	500500 5001000
Cabinet Weight(kg)	6.5	6.5	6.5/12	6.5/12	6.5/12	7.4/13	7.4/13
Pixel Density	409600	262144	147456	112896	65536	112896	65536
Material	Die-casting Aluminum
Operating Temperature	-20°C~60°C	-20°C~60°C	-20°C~60°C	-20°C~60°C	-20°C~60°C	-20°C~60°C	-20°C~60°C
Operating Humidity	10%~90%	10%~90%	10%~90%	10%~90%	10%~90%	10%~90%	10%~90%
Refresh Rate	3840HZ	3840HZ	3840HZ	3840HZ	3840HZ	3840HZ	3840HZ
Drive Mode	1/40	1/32	1/32 1/24	1/28	1/16	1/21	1/16
Brightness(nits)	≥800	≥800	≥800 ≥5000	≥800	≥1000	≥5500	≥5000
Viewing Angle(H/V)	160°/160°	160°/160°	160°/160°	160°/160°	160°/160°	160°/160°	160°/160°
Frame Rate	≥50/60	≥50/60	≥50/60	≥50/60	≥50/60	≥50/60	≥50/60
Control Mode	Synchronous
Input Voltage	AC110/220V	AC110/220V	AC110/220V	AC110/220V	AC110/220V	AC110/220V	AC110/220V
Max.Power(W/sqm)	<800	<800	<800	<800	<800	<800	<800
Average Power(W /sqm)	<180	<180	<180	<180	<180	<250	<250
Lifespan		>100000h
